cell culture plate

Gamma-ray sterilization (polystyrene)

Specifications:

6 Well Plate: D1=35.5mm, D2=34.8mm, H=17.5mm 12 Well Plate: D1=22.0mm, D2=20.8mm, H=17.0mm 24 Well Plate: D1=16.3mm, D2=15.6mm, H=18.0mm 48 Well Plate: D1=12.5mm, D2=10.8mm, H=17.5mm 96 Well Plate: D1=10.7mm, D2=10.0mm, H=16.9mm

Note: Structural and dimensional diagrams are for reference only; actual product may vary.

Product Features:

WHB cell culture plates are manufactured from high-quality polystyrene using ultra-precision molds and fully automated production processes.

Designed for laboratory cell culture, this product features superior optical properties for enhanced microscopic observation.

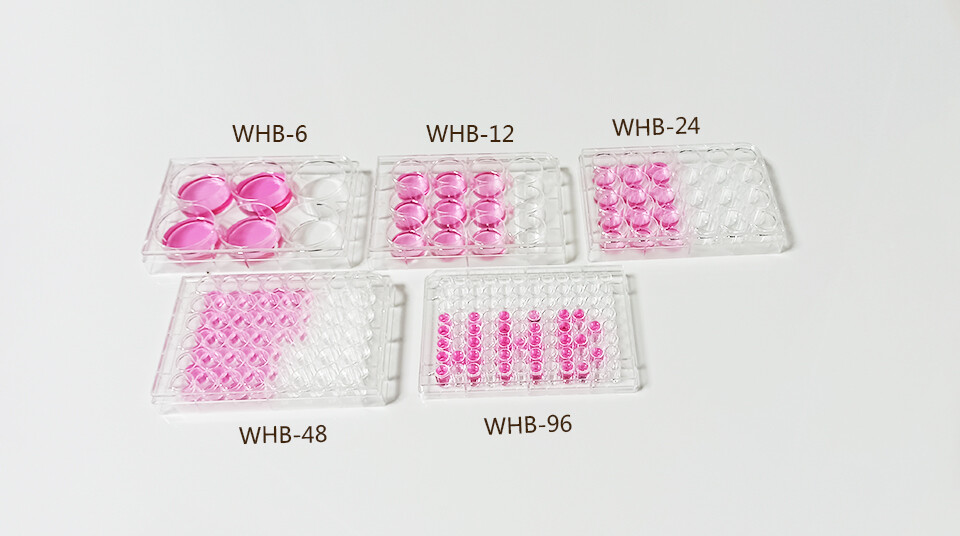

Surface treated with TC for improved cell adhesion. 5 well plate options available: 6, 12, 24, 48, 96-well; transparent, white, and black plates available.

Cell culture plates are classified by bottom shape as flat-bottom, U-shaped bottom, and V-shaped bottom.

One-way cover design with a sealing ring to minimize contamination.

The lid fits snugly, ensuring proper ventilation while preventing contamination or loss of the culture medium.

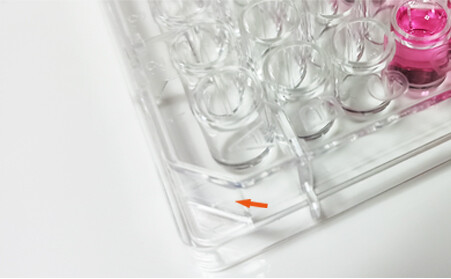

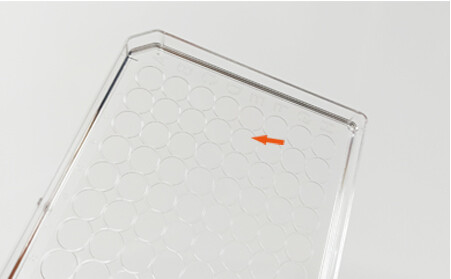

Raised well edges prevent cross-contamination; alphanumeric coordinate labeling for easy experiment tracking.

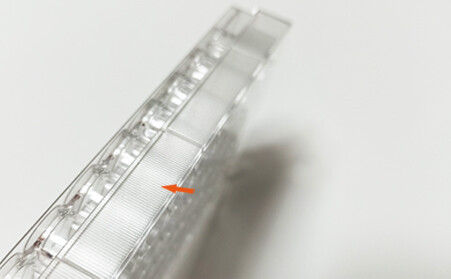

Stackable design saves space and optimizes lab conditions.

Excellent compatibility; works with most devices.

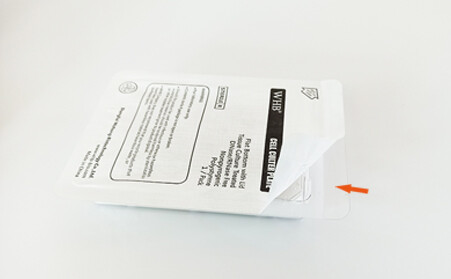

Sterilized by gamma irradiation; DNase-free, RNase-free, and pyrogen-free.
